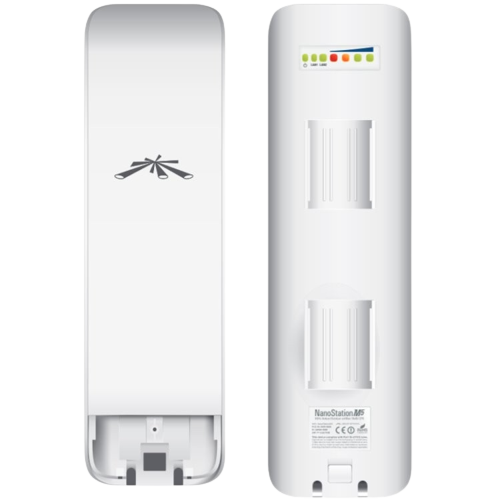

Ubiquiti NanoStation M2 (NSM2)

Ubiquiti NanoStation M2 (NSM2)

Compare

Ubiquiti NanoStation M2 (NSM2)

  • Frequency : 2.4Ghz
  • Range : 15km+
  • Wi-Fi Router: No
  • Cellular Tethering via USB: No
  • Integrated Cellular Modem: No
  • Ethernet Ports: 2
  • Power Source: Passive PoE (power over ethernet)
  • Dimensions:Â11.57 x 1.22 x 3.15″
  • Outdoor Rated: Yes

KSh 12,500.00

Compare

Ubiquiti NanoStation M2 (NSM2)

Features

Frequency 2.4 GHz
Throughput 150+ Mbps
Range 13 km
Gain 11 dBi

 Ubiquiti NanoStation M2 – Wireless Access Point – AirMax (NSM2)  This wireless access point features an enhanced 400 MHz Atheros processor along with 32MB of SDRAM and 8MB of flash memory.

SYSTEM INFORMATION
MODEL NANOSTATIONM
PROCESSOR ATHEROS MIPS 24KC, 400 MHZ
MEMORY 32 MB SDRAM
8 MB FLASH
NETWORKING INTERFACE 2 X 10/100 ETHERNET PORTS
REGULATORY COMPLIANCE
WIRELESS APPROVALS FCC PART 15.247, IC RS210, CE
ROHS COMPLIANCE YES
PHYSICAL / ENVIRONMENTAL SPECIFICATIONS
POWER SUPPLY (POE) 24 V / 0.5 A
MAX POWER CONSUMPTION 8 W
GAIN 11 DBI
POLARIZATION DUAL LINEAR
ENCLOSURE CHARACTERISTICS OUTDOOR UV STABILIZED PLASTIC
MOUNTING POLE MOUNTING KIT INCLUDED
POWER METHOD PASSIVE POWER OVER ETHERNET (PAIRS 4, 5+; 7, 8 RETURN)
OPERATING TEMPERATURE -22 TO 167°F / -30 TO 75°C
OPERATING HUMIDITY 5 TO 95% CONDENSING
SHOCK AND VIBRATION ETSI300-019-1.4
ANTENNA
GAIN 10.4-11.2 DBI
CROSS-POL ISOLATION 23 DB MINIMUM
MAX VSWR 1.6:1
BEAMWIDTH 55° (H-POL) / 53° (V-POL) / 27° (ELEVATION)
DIMENSIONS & WEIGHT
DIMENSIONS 11.57 X 1.22 X 3.15″ / 294 X 31 X 80 MM
WEIGHT 14.1 OZ / 0.4 KG
PACKAGING INFO
PACKAGE WEIGHT 1.6 LB
BOX DIMENSIONS (LXWXH) 12.677 X 4.803 X 3.307″
