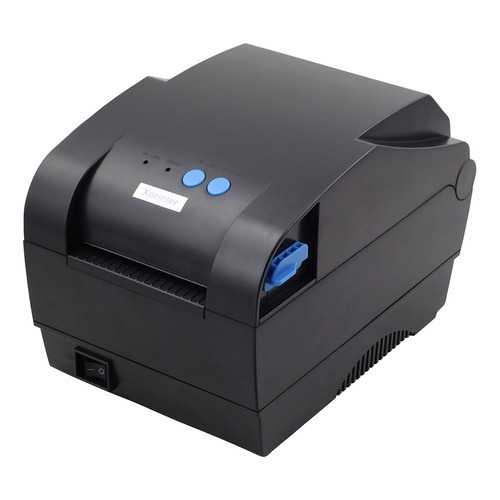

Xprinter XP-330B – Thermal Label Printer



Xprinter XP-330B – Thermal Label Printer

Description
Print printing method direct line thermal
resolution 203 DPI
Print width 76mm
printing speed Thermal label mode: 127mm/s; Thermal bill mode: 220mm/s
Memory memory DRAM: 4M FLASH: 4M
Communication Interface Communication Interface USB (standard)/USB+Bluetooth (optional)
Print Head Print head position detection Micro Switch
paper presence detection Photoelectric Sensors
Barcode character graphics barcode CODE128, EAN128, ITF, CODE39, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPC-E, UPCE+2, UPC-E+5, CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14
QR code PDF417, QRCODE, DATAMATRIX
character set Commonly used single-byte fonts: FONT 0 to FONT 8
Character enlargement/rotation It can be enlarged 1-10 times in both horizontal and vertical directions, and rotated for printing ((0°, 90°, 180°, 270°)
graphics Monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM
medium Paper type Thermal paper, self-adhesive paper, etc.
Media width 20～82mm
Paper roll outer diameter 1000mm
Paper roll inner diameter 25~38mm
Paper thickness 0.06-0.19mm
Paper ejection method tear apart
power supply enter AC 100-240V, 50～60Hz
physical properties weight 1.48kg
physical dimension 230(D) x 163(W) x 152(H)mm
Environmental requirements working environment 5～45℃, 20～80%RH (no condensation)
Storage environment -40～55℃, ≤93%RH (40℃)
Qty Qty 12 units/carton
